(WorldFrontNews Editorial):- Hangzhou, Zhejiang Jun 30, 2026 (Issuewire.com) – In modern industrial fluid management, selecting the right micro external gear pump involves balancing several strict technical requirements. For instance, chemical processing setups and automotive Selective Catalytic Reduction (SCR) systems require high dosing accuracy, long-term maintenance-free operation, and excellent chemical resistance against corrosive fluids like urea solutions. At the same time, maintaining low-pulse and low-noise operations remains a critical engineering target. Achieving this standard requires perfect synchronization between the mechanical pump head and the driving motor. Hangzhou Boyang Motor Co., Ltd., established in 1998, addresses these integration challenges directly.

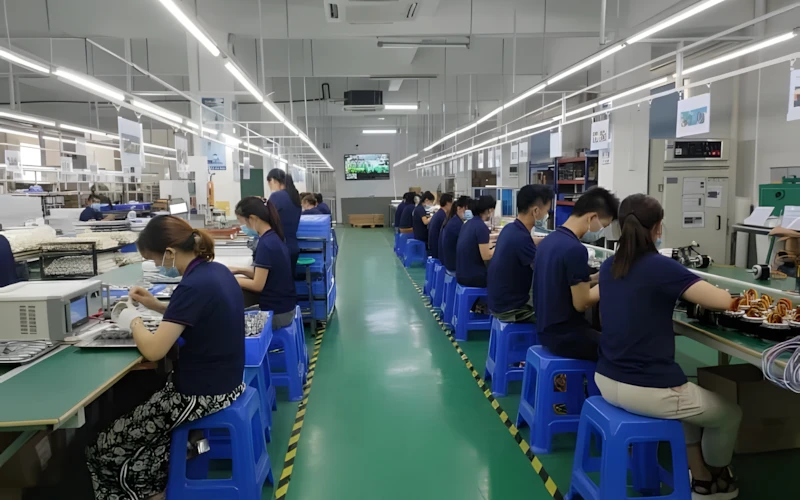

As a High Quality Brushless Gear Pump Factory with over 28 years of manufacturing experience, a workforce of 600 skilled employees, and CE-certified production lines, Boyang Motor designs unified motor-driver-pump systems rather than standalone fluid components.
Optimizing Fluid Mechanics with Sine Wave Driven BLDC Motors
A primary source of noise and pressure pulsation in traditional fluid transfer setups is the torque ripple generated by standard electric motors. When fluid delivery systems experience sudden torque changes, it causes pressure spikes at the pump outlet. Boyang Motor addresses this issue by integrating advanced brushless dc motor technology with specific pump head mechanics. The company provides versatile bldc motor platforms supporting various voltage inputs, including 24V, 36V, 48V, and 310VDC. These motors can be configured with hall sensor six-step control or advanced external sine wave PWM controllers.
For automotive SCR applications, where precision dosing of diesel exhaust fluid is required to reduce NOx emissions, the benefits of sine wave driving are clear. The smooth current waveforms reduce torque ripple, resulting in an exceptionally steady discharge flow from the brushless gear pump. This stable flow helps the SCR system maintain exact dosing, avoiding fluid delivery fluctuations that can trigger on-board diagnostics alarms. In chemical processing, using sine wave drives alongside precise dynamic balancing of the pump head shaft significantly lowers structural vibrations and audible noise, creating a quieter working environment.
Engineering Material Compatibility and System Parameters

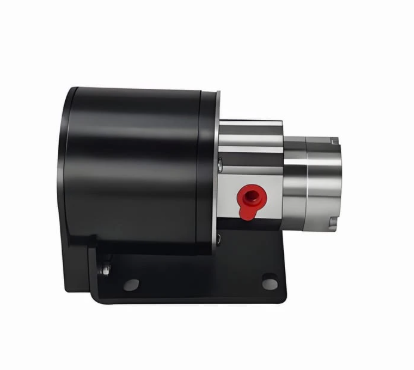

The mechanical design of a high quality brushless gear pump requires careful selection of internal parameters and materials to ensure long-term durability in harsh chemical environments. Boyang Motor develops micro gear pumps with displacement ratings from 0.2 to 3.5 ml/rev, delivering flow rates between 0 and 10.5 L/min. These units handle operational differential pressures from 8 to 40 Bar and manage fluid temperatures spanning from -120 to 150 degrees Celsius, achieving a wet-end service life exceeding 20,000 hours.
To protect against chemical corrosion, the internal fluid-facing components are customized for specific media. For SCR applications, standardizing on viton or EPDM seals ensures reliable resistance against a 32.5 percent aqueous urea solution. For handling mild acids or bases in chemical processing, the company offers alternative material choices, including PEEK, Viton, or PTFE seals, combined with stainless steel or specialized engineering plastic pump casings. Furthermore, the direct-coupled design connects the motor and pump on a single axis, removing the need for external couplings and eliminating a common source of mechanical vibration.
Advanced Fluid Isolation via Micro Magnetic Drive Innovations
To completely eliminate the risk of external fluid leakage in high-consequence applications, advanced product lineages like the BYMP020 and BYMP030 micro magnetic gear pump series employ a static O-ring seal architecture coupled with a magnetic drive transmission. By replacing traditional mechanical shaft seals with a contactless magnetic coupling, the medium within the pump housing remains completely isolated from the external environment. This design effectively mitigates seal wear and subsequent leakage risks when handling volatile chemical media or sensitive fluids.
The structural configuration of these specialized series further refines the low-noise performance of the overall system. In the BYMP030 series, which handles flow ranges up to 3 L/min under an operating differential pressure up to 15 Bar, helical gears are implemented to provide a smooth, continuous meshing process. This helical profile minimizes internal friction, mechanical impact, and structural vibration during high-speed rotation. Powered by a high-efficiency 150W bldc motor operating up to 4500 rpm, the entire assembly maintains an operational acoustic footprint of less than 60 decibels. For systems with lower volumetric requirements, the BYMP020 series offers a highly compact footprint with an integrated brushless motor assembly, delivering precise, pulse-free fluid delivery with an inlet vacuum capacity reaching -0.85 Bar. This high suction capability ensures reliable priming and consistent dosing performance even under restrictive intake conditions.
Strategic Advantages of Motor-Centric Engineering
The integration of advanced fluid systems often uncovers hidden alignment issues when generic motors are paired with third-party pump heads. Hangzhou Boyang Motor Co., Ltd. resolves this by utilizing its core expertise as a dedicated motor manufacturer to optimize its fluid products.
- Coordinated Parameter Calibration:Engineers can pre-select motor constants, back electromotive force, and phase resistance based on the exact torque-speed curve of the pump head. The driver PID parameters are fine-tuned to handle the initial fluid friction during start-up, which prevents system resonance and starting delays–a crucial factor during cold-start cycles in automotive SCR systems.
- Traceable Quality Control:Since many fluid pump failures originate in the electrical or drive components, Boyang Motor manages quality by manufacturing the underlying motor technology in-house. Every assembly undergoes testing on simulation benches that mimic real-world load, temperature spikes, and vibration levels under strict ISO standards.
- Efficient Customization Cycles:The company manages the complete development lifecycle from initial motor design and engineering drawings to sample validation and mass production planning. Technical teams support this process by committing to provide a response within 24 hours to customer design inquiries.
Achieving Precision, Quiet Operation, and Longevity
Selecting fluid equipment for chemical handling and automotive dosing requires balancing component durability with precise flow control. By utilizing sine wave driven BLDC motors, selecting chemically compatible seal materials, and matching motor-pump performance curves, Boyang Motor delivers reliable fluid solutions for demanding industrial environments.
Industrial equipment builders and SCR system integrators looking for optimized fluid setups can share their operational requirements, including chemical media types, flow-pressure curves, and space limitations, to receive matched pump-motor-driver configurations or evaluation prototypes through https://www.boyangmotor.com/.
